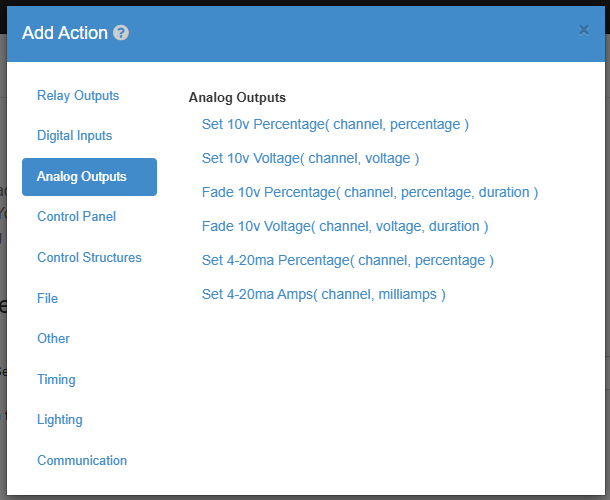

Analog Output Actions⚓︎
Set 10v Percentage⚓︎
The Set-10v-Percentage Action allows you to set one of two output channels on the 10volt expanision module from a range of 0 - 100%. The first value is a channel of the 10volt expansion module, and the second value is the percentage of voltage the channel has.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 10v Module. |
| Percent | Number | Sets amount of voltage on the output as a percent from 0 - 100 |
Set 10v Voltage⚓︎
The Set-10v-Voltage Action allows you to set one of two output channels on the 10volt expanision module from a range of 0 - 10 volts. The first value is a channel of the 10volt expansion module, and the second value sets how much voltage the channel has.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 10v Module. |
| Percent | Number | Sets amount of voltage on the output in voltage from 0 - 10 |
Fade 10v Percentage⚓︎
The Fade-10v-Percentage Action allows you to set one of two output channels on the 10 volt expanision module from a range of 0 - 100% over a duration of seconds. The first value is a channel of the 10volt expansion module, the second value is the percentage of voltage the channel has, and the third value is the amount of time it takes to transition to that percentage.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 10v Module. |
| Percent | Number | Sets amount of voltage on the output as a percent from 0 - 100 |
| Time | Number | The amount of time it will take to gradually change the percent of the output to it's new value. |
Fade 10v Voltage⚓︎
The Fade-10v-Voltage Action allows you to set one of two output channels on the 10 volt expanision module from a range of 0 - 10 over a duration of seconds. The first value is a channel of the 10volt expansion module, the second value is the voltage the channel has, and the third value is the amount of time it takes to transition to that percentage.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 10v Module. |
| Percent | Number | Sets amount of voltage on the output in voltage from 0 - 10 |
| Time | Number | The amount of time it will take to gradually change the voltage of the output to it's new value. |
Set 4-20ma Percentage⚓︎
The Set-420ma-Percentage Action allows you to set one of two output channels on the 4-20ma expanision module from a range of 0 - 100%. The first value is a channel of the 4-20ma expansion module, and the second value sets how many amps the channel has.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 4-20ma Module. |
| Percent | Number | Sets amount of amps on the output as a percent from 0 - 100 |
Set 4-20ma Amps⚓︎
The Set-420ma-Amps Action allows you to set one of two output channels on the 4-20ma expanision module from a range of 4 - 20 amps. The first value is a channel of the 4-20ma expansion module, and the second value is the percentage of amps the channel has.
| Element | Type | Notes |
|---|---|---|
| Channel | Number | The number has to be one of the available outputs on the 4-20ma Module. |
| Amps | Number | Sets amount of amps on the output in amperage from 4 - 20 |
