Analog Presets

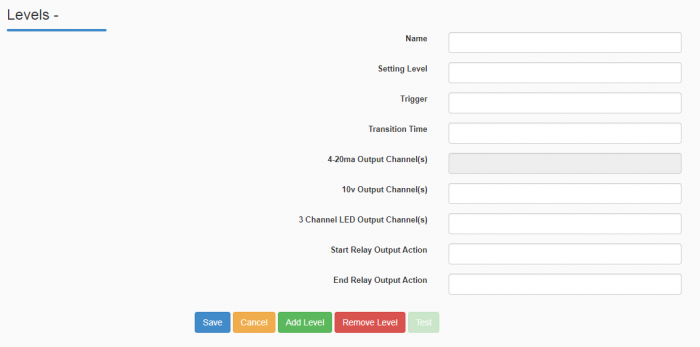

Being able to control expansion modules through other means besides the JNIOR Web Page is vital for there usefulness, and Analog Presets provides just that. Analog Presets allows the user to create “levels” that will set channels on the expansion modules to whatever the user wants them to be. To set the values of an expansion module, just have an expansion module connected, and after making sure its connected using the extern command on the JNIOR Web Page, refresh the Analog Presets web page to configure the expansion modules value field.

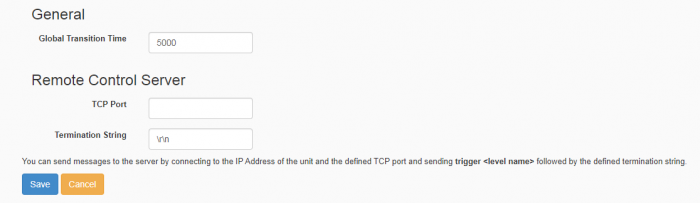

"Levels" can set other outputs at the start or end of a Level. This can let you chain "levels" together. Levels can also be activated by creating macros in the Support Tool. Analog Presets has a general page that lets you control global transition time for the levels along with the TCP port and termination string.
