Using the Control Panel With Tasker December 18, 2020

The Control Panel is a very useful add-on to the JNIOR.  It gives you manual switches, visual indicators and an audio alarm.  Each of these features can be configured and used in Tasker.  Let’s check out how!

Before addressing how Tasker works with the Control Panel, you’ll want to make sure its connected properly. You can do so by using the extern command. When you are sure the Control Panel is correctly connected you’ll be able to integrate it with Tasker.

Here are the actions associated with the Control Panel.  Each one will be talked about in depth further down this post.

Control Panel actions for Tasks in Tasker

Using the Control Panel Switches as a Trigger

To enable the Control Panel Switches to be a Trigger that will be used to activate a Task is a very simple process. You only need to go to the trigger tab and add a trigger type set to the control panel switches.

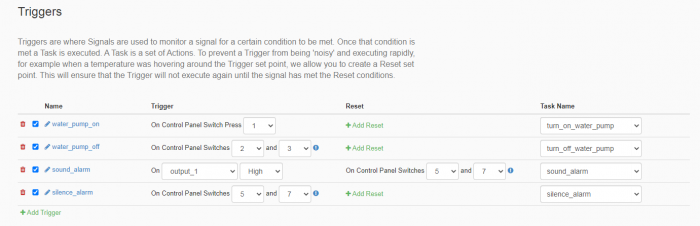

Here are the triggers to implement the two scenarios.  Since the switch to turn the water pump on has no reset, it can be pressed as many times as the user wants.  The same goes for turning the pump off, except to turn it off requires switch 2 and 3 to be pressed at the same time.  However, the sounding of an alarm is different. The alarm sounds when output 1 goes high. It does have a reset, which we cleverly used as a trigger for the silence alarm trigger as well. So in order for you to stop the alarm, you have reset the trigger for the alarm as well.

Using the Visual Indicators in a Task

The Visual Indicators on the Control Panel are the the 12 LEDs labeled L1 through L12.  The LEDs can be controlled by setting them to be OFF, ON, or to flash at different rates.  The LED will be on or flashing until it is turned off.

Set Control Panel LED Tasker example

Using the Audio Alarm in a Task

The Control Panel has a PC speaker on the back on the unit that can produce an audible alarm.  This is great for alerting people without the person needing to be looking at the Control Panel already.  Here is the setup when configuring the Alarm to be played.

The alarm plays with an oscillating sound.  You can select between slow, medium, fast, or custom.  Then a duration is needed in seconds followed by the volume on a scale of 0 – 100%.

Control Panel alarm Tasker example

If the custom option is selected then then additional options of the audio frequency to use and the duration of each beep are presented.

Control Panel alarm custom example

You can also elect to Silence and Alarm.  Maybe you have an alarm that plays for 60 seconds but can be silenced when someone responds to a given situation.  To do that we will use the Silence Alarm action.
