Executing DMX Scripts with Cinema

Written on: September 16, 2019 3:29 pm

You can use the Cinema application to execute DMX scripts. Those scripts can be on the same JNIOR or on another JNIOR. Both situations require making a TCP or Raw Ethernet connection to port 10000.

To execute a script once you will send go SCRIPTNAME\r\n

To execute a script a certain number of times you will send the same command but with a repeat parameter. For example, to execute 3 times we would send go SCRIPTNAME -r 3\r\n

To execute a script and have it repeat forever, until you abort it or reboot the JNIOR, you will send the -f parameter. For example, go SCRIPTNAME -f\r\n

Create a DMX device to use in the Macro

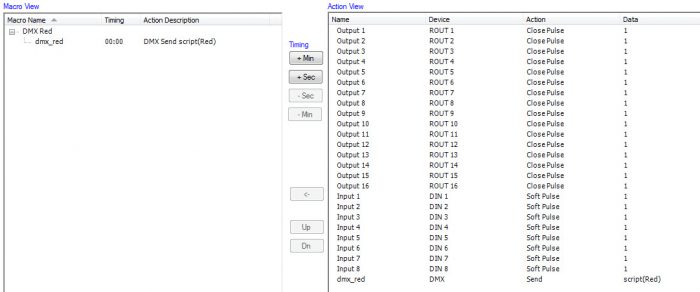

Create a Macro to call a DMX script with the Device we just created

Macro tab of the JNIOR Support Tool
