INTEG Process Group INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512 -Kit includes 12VDC 1A Power Supply (US) and standard screw type connectors -12 Dry Contact Relay Outputs, 4 Isolated TTL Digital Inputs for Monitoring -100Mbps Ethernet Port - TLSv1.2 Secure (Web, FTP, Telnet), incl. MODBUS protocols -1 Isolated DMX512 5-pin Port, 1 Standard RS-232 Serial Port -Includes Ride-Thru Power Technology (uninterrupted by short <15 second power outages)
$489.99

Home / Shop

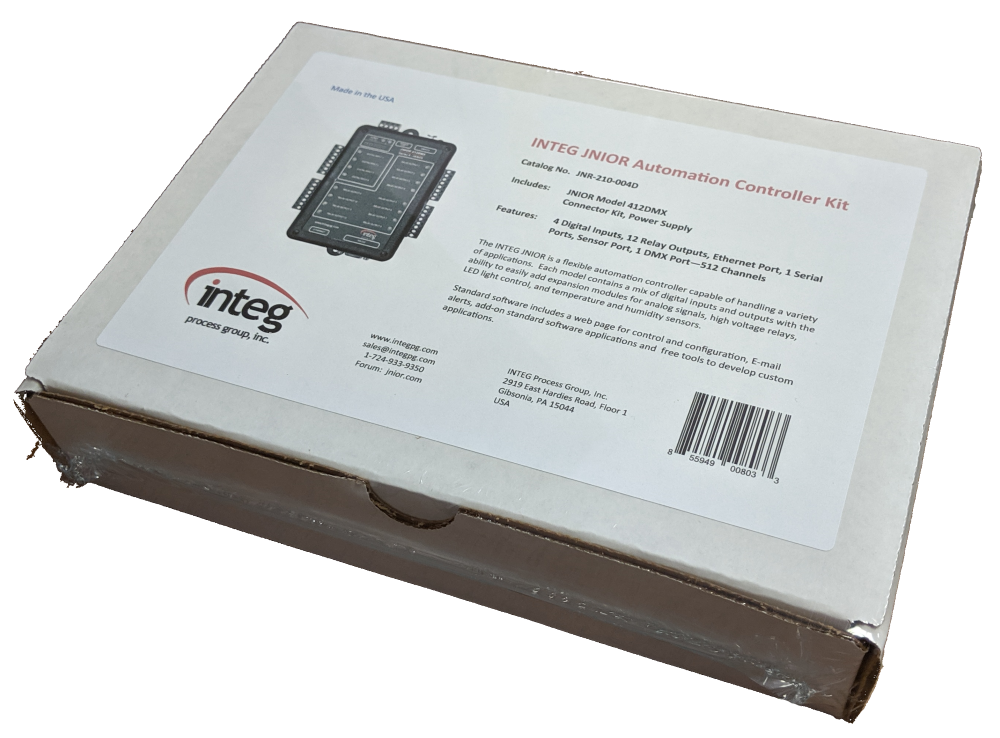

INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512

$489.99
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512
INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512

Home / Shop

INTEG JNIOR Model 412DMX 4/12(I/O) Controller Kit w/DMX512

$489.99
Model Number: JNR-210-004D
-Kit includes 12VDC 1A Power Supply (US) and standard screw type connectors
-12 Dry Contact Relay Outputs, 4 Isolated TTL Digital Inputs for Monitoring
-100Mbps Ethernet Port - TLSv1.2 Secure (Web, FTP, Telnet), incl. MODBUS protocols
-1 Isolated DMX512 5-pin Port, 1 Standard RS-232 Serial Port
-Includes Ride-Thru Power Technology (uninterrupted by short <15 second power outages)
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
489.990
Manufacturer: INTEG Process Group
  • Description

The JNIOR Model 412DMX provides one isolated DMX512 port (5-pin) for control of stage lighting fixtures. It is also an Ethernet I/O controller and data acquisition device with 4 digital inputs, 12 relay outputs, one Ethernet port, one serial port and one Sensor port for JNIOR Expansion Modules. The built-in JANOS operating system provides a secure web connection (TLSv1.2) and access to the Dynamic Configuration Pages (DCP) allowing for remote relay control and input status as well as device configuration. This is ideal for simple and remote circuit switching right out of the box. The JANOS command line interface is accessible securely through the DCP and via an extended Telnet session (STARTTLS). INTEG can supply free Telnet client software capable of the secure connection. The command line can also be reached through the COM serial port. The DCP Web interface is open software and not obfuscated in any way. Users are free to modify the code to extend the DCP or create their own dynamic web interface. The JANOS Web Server is fully functional and supports multiple simultaneous requests. A limited form of PHP-like server side scripting is supported. The Web Server can uniquely serve an entire site from a single ZIP library file solving many Web version control issues. Custom JNIOR applications can be developed in Java(R) using the JANOS Runtime Class Library. The resulting JAR can be loaded and executed as a program or command line extension. Several simultaneous programs can be running. The JNIOR includes built-in software applications allowing the user to implement some control functions without programming. The JNIOR is an easy to use, cost-effective programmable logic controller (PLC) alternative.
